Product Description

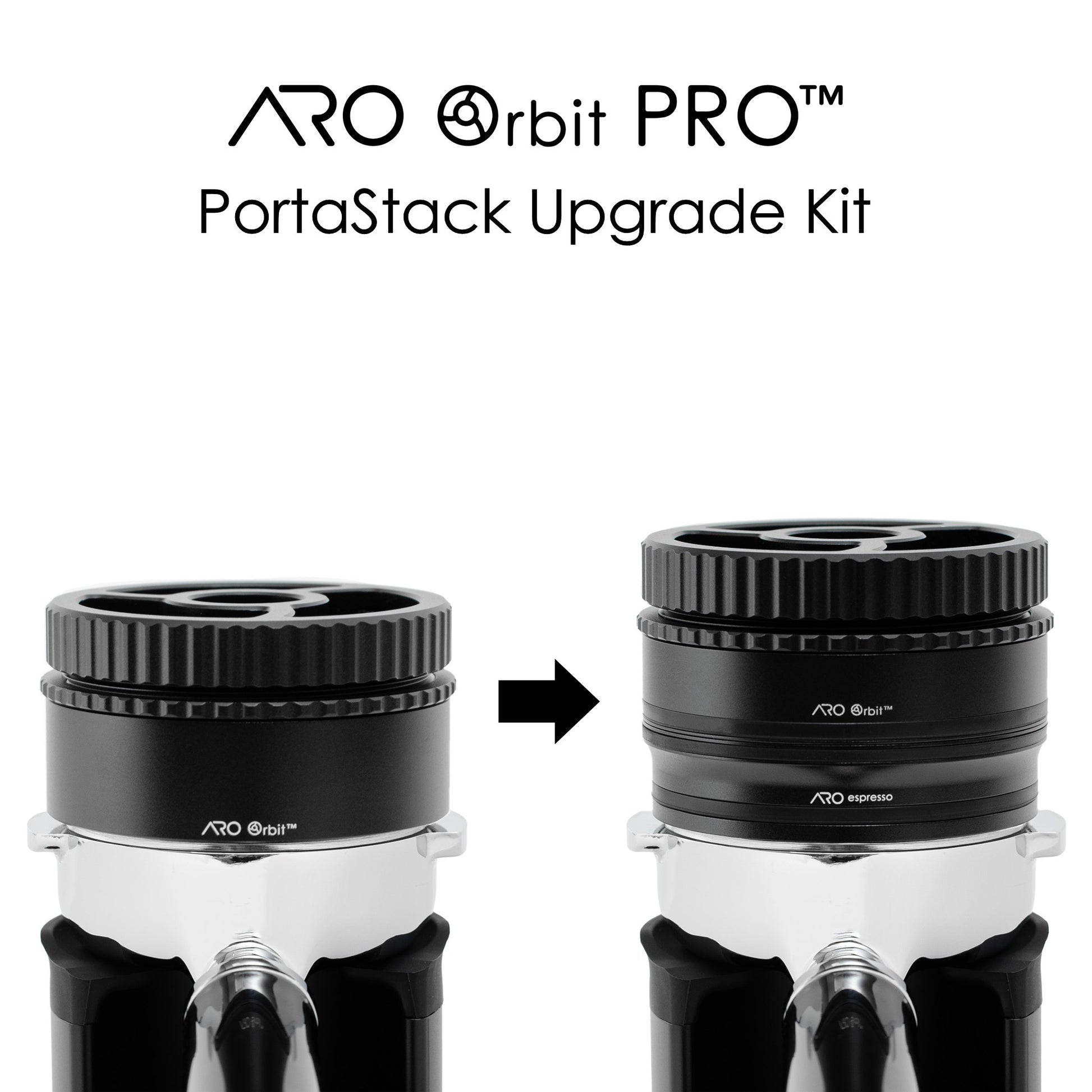

The ARO Orbit PRO™ PortaStack Upgrade Kit converts an existing ARO Orbit PRO™ for compatibility with the ARO PortaStack system. This kit replaces the standard magnetic sleeve used for connection with an espresso basket with a magnetic docking sleeve, allowing the Orbit PRO™ to dock directly to the ARO® PortaFunnel – PortaStack Edition. It also includes extra-long pins and an extra-tall storage stand, designed to accommodate the added height introduced by the PortaFunnel.
This upgrade is intended for customers who already own a standalone Orbit PRO™ and want to integrate it into the PortaStack workflow without purchasing a new tool.
For a full explanation of the Orbit PRO™ distribution mechanism, spirographic motion, and workflow benefits, see the complete Orbit PRO™ – PortaStack Edition listing.
Key Features

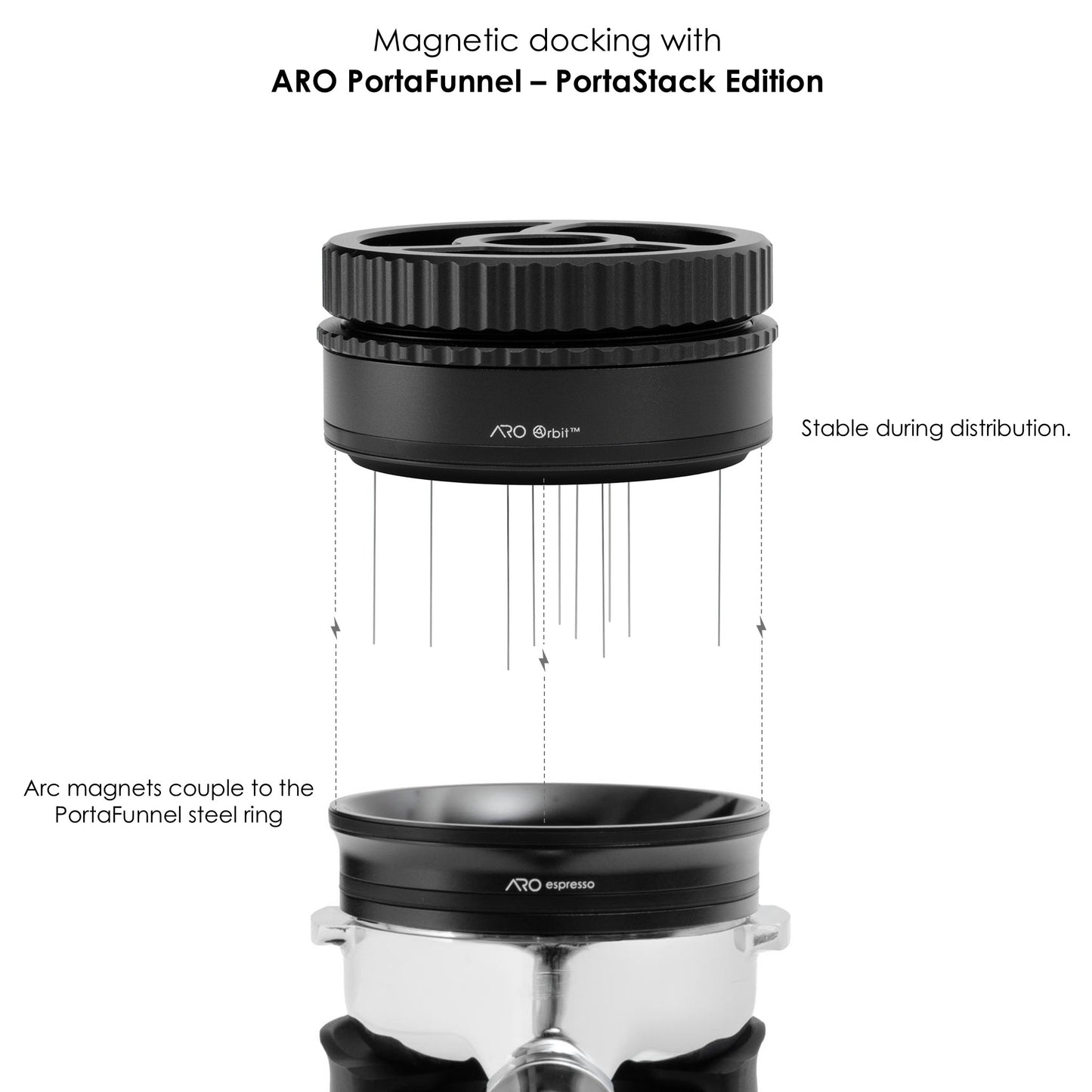

- Adds PortaStack Compatibility: Enables the Orbit PRO™ to magnetically dock to the ARO® PortaFunnel – PortaStack Edition for centered, repeatable placement.
- Reversible Retrofit: No permanent changes to the Orbit PRO™. The PortaStack sleeve can be removed to return the tool to its original configuration.
- Guided Pin Entry During Placement: The large PortaFunnel opening creates a forgiving target that ensures all pins enter the basket cleanly, reducing the risk bent pins during placement.
- Contained, Spill-Free Distribution: Using the PortaFunnel keeps grounds fluffed above the basket contained, eliminating spillover when the tool is removed to reduce mess.
- Durable Aluminum Construction: Crafted from aluminum to ensure strength and longevity. Finished with a premium, scratch-resistant satin anodize.
Compatibility
The Orbit PRO PortaStack Upgrade Kit is compatible with existing Orbit PRO tools in the corresponding size.

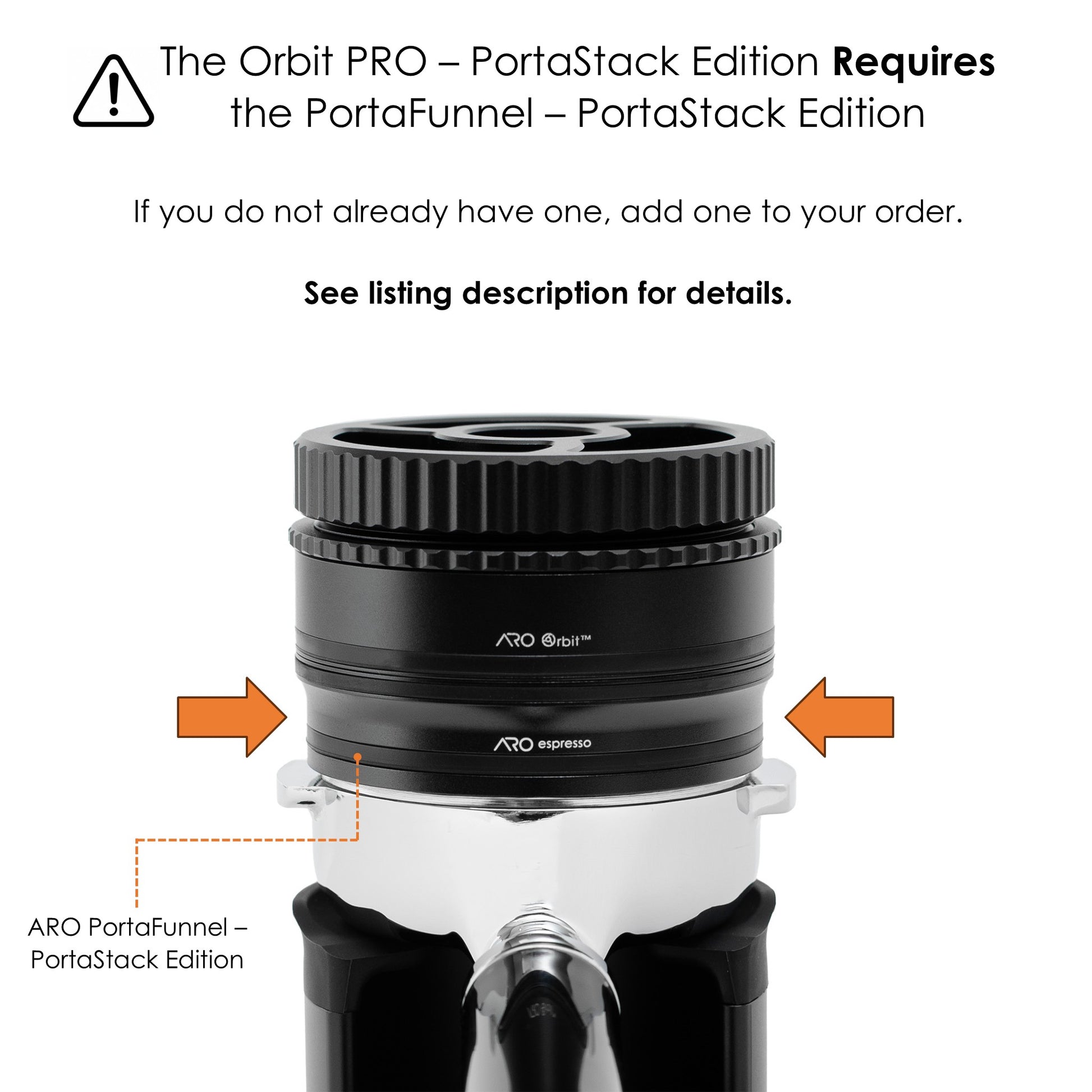

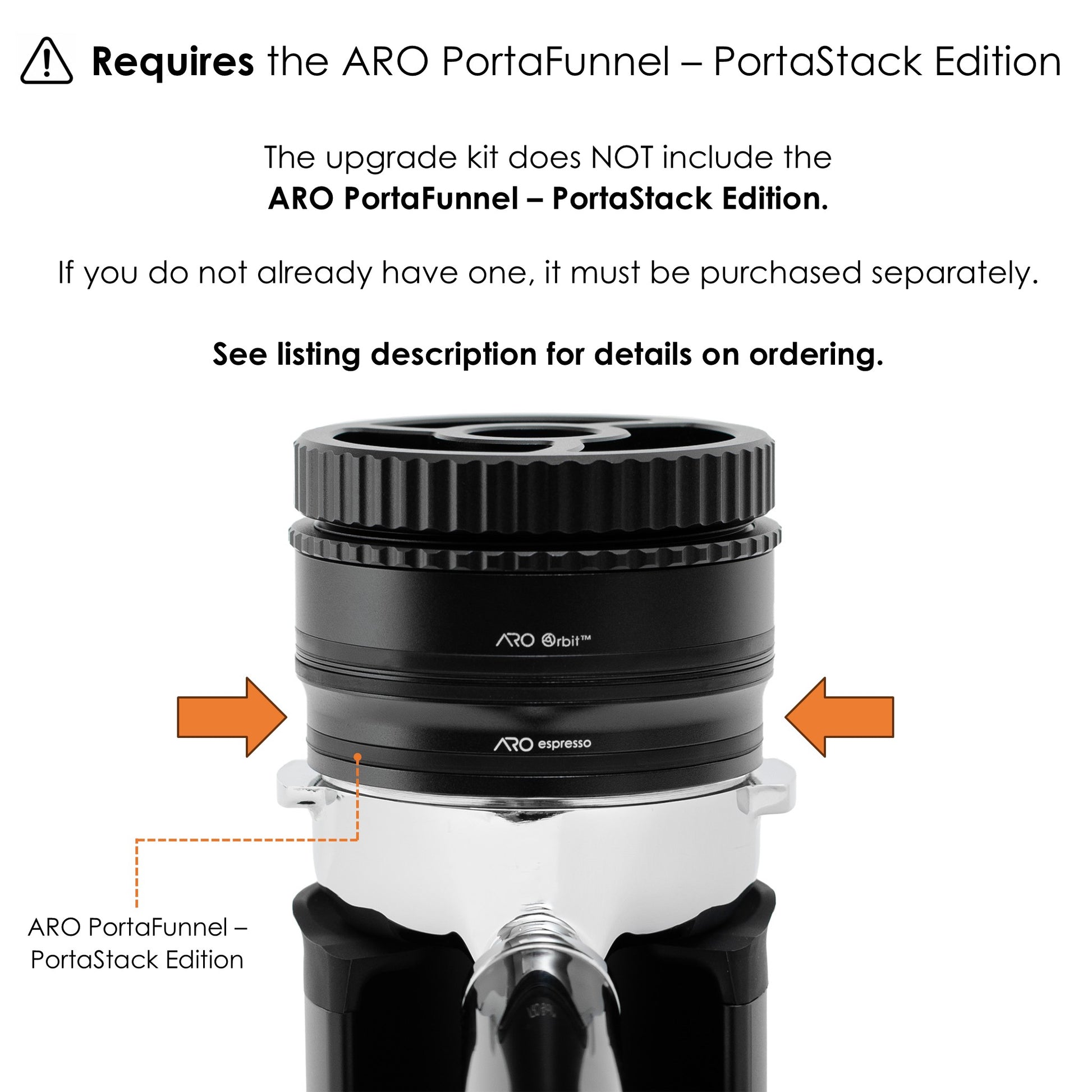

PortaFunnel Required: The PortaFunnel – PortaStack Edition is required for proper use of the upgraded Orbit PRO. The PortaFunnel provides the correct docking interface and vertical clearance for the upgraded magnetic sleeve and longer pins. If you do not already own a compatible PortaFunnel, you must add one to your order. Learn more about the ARO® PortaFunnel – PortaStack Edition.
Size Matching: Your Orbit PRO™, Upgrade Kit, and PortaFunnel must all be the same size.
If you are unsure which components or size you need, please contact us before ordering.
Set-Up Instructions
Follow the steps below to convert your existing ARO Orbit PRO™ for full PortaStack™ docking compatibility.
- Unscrew and remove the existing magnetic sleeve from your ARO Orbit PRO™.
- Remove the original short pins from the tool.
- Install 10 of the longer pins included in this upgrade kit.
- Screw on the PortaStack-compatible magnetic docking sleeve included in the kit.
- Store the upgraded tool in the extra-tall stand included.
For full usage instructions and workflow guidance, see the Orbit PRO™ – PortaStack Edition listing.

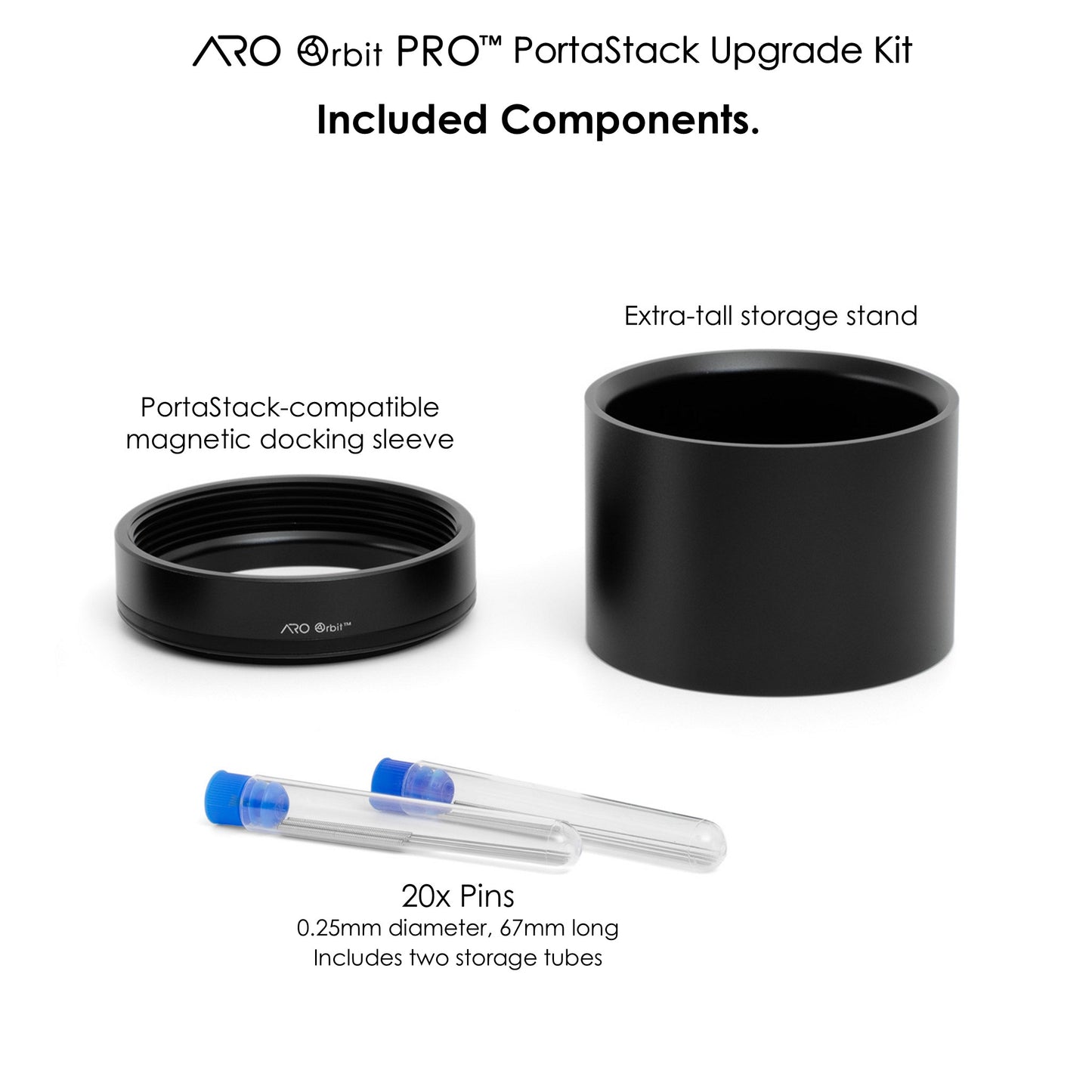

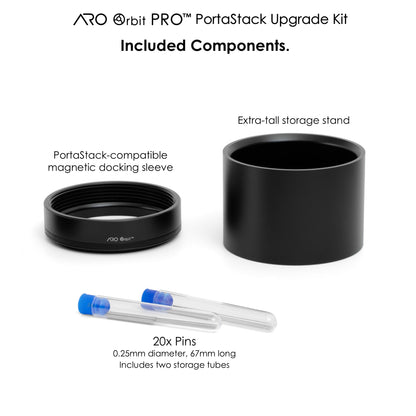

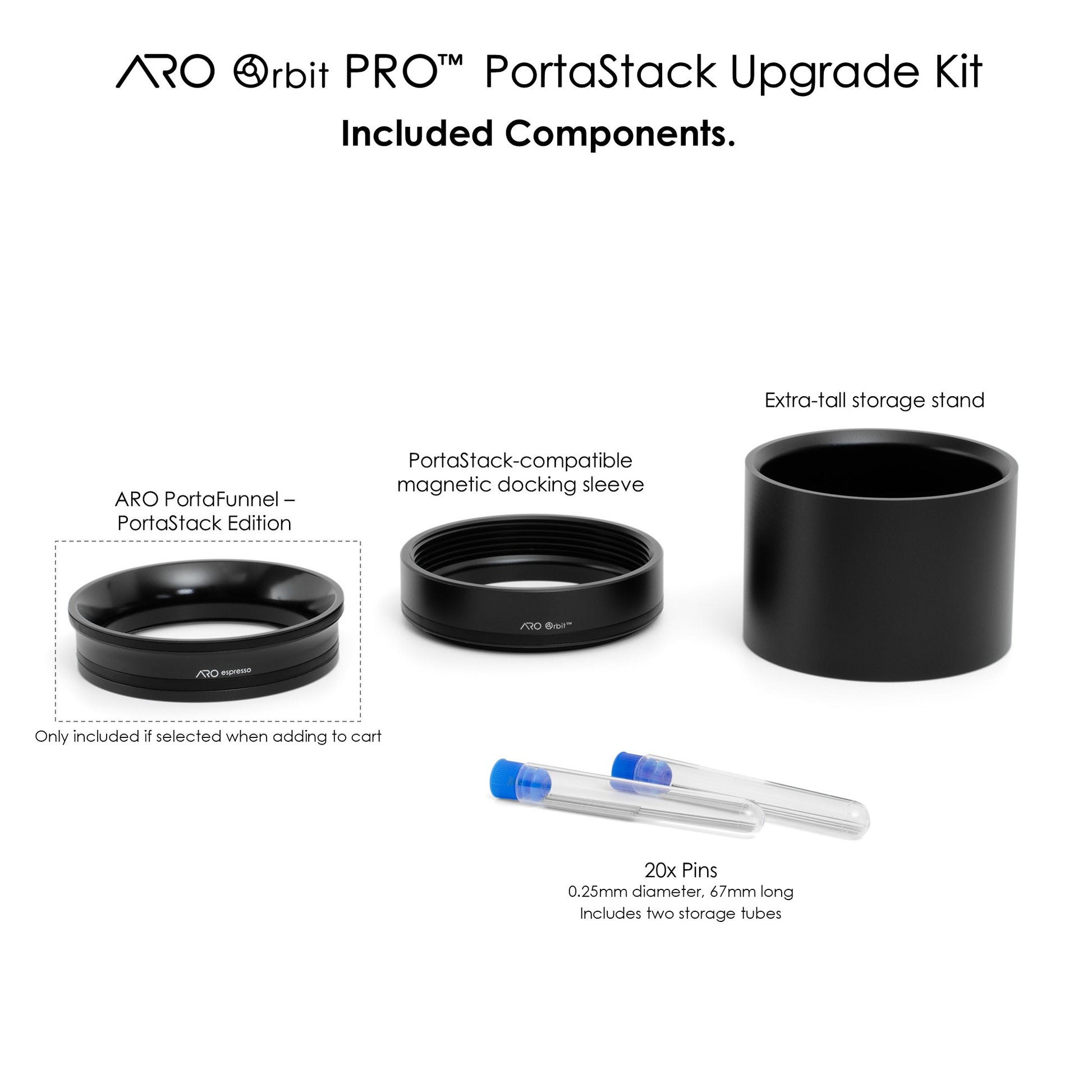

What’s in the Box
- PortaStack-compatible magnetic docking sleeve
- Extra-tall storage stand
- 20x pins (0.25mm diameter, 67mm long), including two pin storage tubes
Care and Maintenance
Brush off loose grounds after use or wipe clean with a dry or slightly damp cloth. The sleeve may be removed for cleaning if needed. Hand wash only with mild soap and lukewarm water. Rinse thoroughly and dry completely before reassembly. Not dishwasher safe.
